PProducts



Overview

       Panel( Piping ) Type flowmeter is also called the variable-area flowmeter. The material of measuring tube is made of High-quality and transparent lucite (acrylic) . This flowmeter is mainly applied to form a complete set in dean water treatment and environmental protection projects. It also can be used in chemical industry,petroleum, light industry, medicine, fertilizer, food, papermaking and scientific research, etc., to measure  the single- phase non- pulsing flow of liquid and gas. Panel( Piping ) type flowmeter has the characteristics of high transparency, reading is intuitive, unbreakable, light weight,long-Iife,easilg installed and serviced ect.

Technical Parameters



Normal flowrate range

(water)

GPM

0.1-1

0.2-2

1-5

1-10

2-16

2-20

4-40

6-60

10-100

50-150

LPM

0.5-4

1-7

2-18

5-35

4-60

10-70

15-150

25-250

50-350

190-550

Accuracy

           ±4%FS

Repeatability

           ±0.25%FS

Maximum pressure

           1MPa/150psig

Maximum temperature

           80℃/176oF

Body material

           PMMA(Acrylic)

Float material

           316(Stainless steel)

Guide rod material

           316(Stainless steel

Fastening screw material

           H62(Copper)

Tube connection material

          UPVC(Nonpoisonous),

        (Can be made of stainless steel or copper chromium)

Upper and lower adapter bearing

          F46

O Shape sealing ring

          Silicon rubber & Viton









LZT—8 Series Panel type Flowmeter

Model

Measuring range

Medium

Remarks

  LZT-0802M

  2-20 l/h

Water

Without valve

  LZT-0804M

  4-40 l/h

  LZT-0806M

  6-60 l/h

  LZT-0810M

  10-100 l/h

  LZT-0802M-V

  2-20 l/h

With valve

  LZT-0804M-V

  4-40 l/h

  LZT-0806M-V

  6-60 l/h

  LZT-0810M-V

  10-100 l/h

  LZT-08A002M-V

  0.1-1LPM

Air

With valve

  LZT-08A01M-V

  1-10SCFH/0.5-5LPM

  LZT-08A02M-V

  2-20SCFH/1-10LPM

  LZT-08A04M-V

  4-40SCFH/2-20LPM

  LZT-08A08M-V

  8-80SCFH/4-40LPM

  LZT-08A10M-V

  10-100SCFH/5-50LPM

  LZT-08A20M-V

  20-200SFH/10-100LPM











LZT—10 Series Panel type Flowmeter

Model

Measuring range

Medium

Remarks

   LZT-1001M

  0.1~1GPM/0.5~4LPM

Water

Without valve

   LZT-1002M

  0.2~2GPM/1~7LPM

   LZT-1005M

  1.0~5GPM/2~18LPM

   LZT-1001M-V

  0.1~1GPM/0.5~4LPM

With valve

   LZT-1002M-V

  0.2~2GPM/1~7LPM

   LZT-1005M-V

  1.0~5GPM/2~18LPM

   LZT-10A04M-V

  0.4~4SCFM/12~120LPM

Air

With valve

   LZT-10A08M-V

  0.8~8SCFM/24~240LPM

   LZT-10A12M-V

  1.2~12SCFM/36~360LPM

   LZT-10A16M-V

  1.6~16SCFM/48~480LPM

   LZT-10A24M-V

  2.4~24SCFM/72~720LPM











LZT-25 Series Panel type Flowmeter

Model

Measuring range

Medium

Remarks

  LZT-2510M

  1-10GPM/5-35LPM

Water

Without valve

  LZT-2516M

  2-16GPM/4-60LPM

  LZT-2520M

  2-20GPM/10-70LPM

  LZT-2530M

  3-30GPM/12-120LPM

  LZT-2535M

  5-35GPM/30-130LPM

  LZT-2540M

  4-40GPM/15-150LPM

  LZT-2510M-V

  1-10GPM/5-35LPM

With valve

  LZT-2516M-V

  2-16GPM/4-60LPM

  LZT-2520M-V

  2-20GPM/10-70LPM

  LZT-25A40M

  4-40SCFM/7-70m3/h

Air

Without  valve

  LZT-25A60M

  6-60SCFM/10-100m3/h











LZT-10 Series Piping type Flowmeter

Model

Measuring range

Medium

Remarks

LZT-1001G

0.1-1GPM/0.5-4LPM

Water

Circular

LZT-1002G

0.2-2GPM/1-7LPM

LZT-1005G

0.5-5GPM/2-18LPM

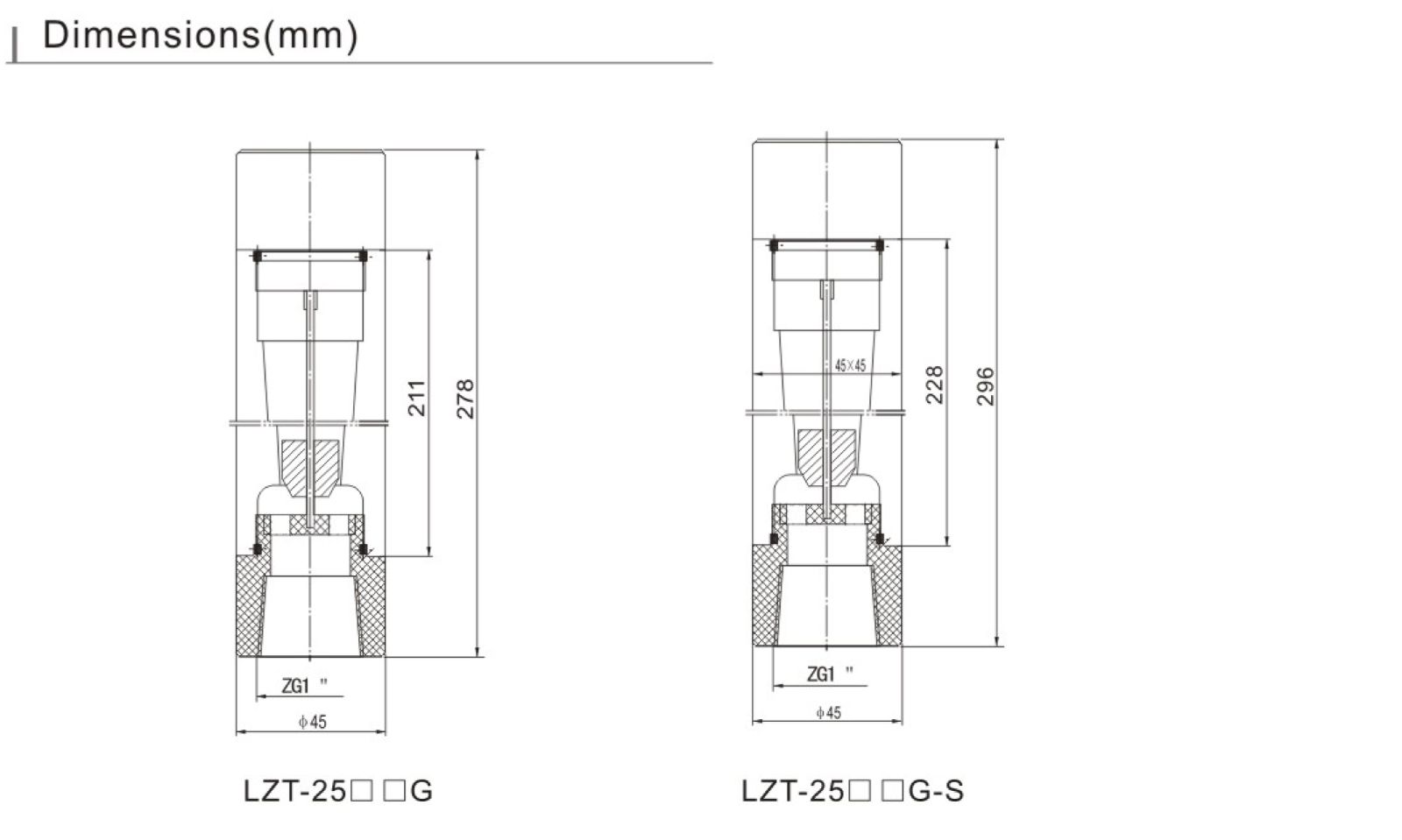

LZT-25 Series Piping type Flowmeter

Model

Measuring range

Medium

Remarks

LZT-2510G

1-10GPM/5-35LPM

Water

Circular

LZT-2516G

2-16GPM/10-60LPM

LZT-2520G

2-20GPM/10-70LPM

LZT-2530G

3-30GPM/12-120LPM

LZT-2540G

4-40GPM/15-150LPM

LZT-2510G-S

1-10GPM/5-35LPM

Square

LZT-2516G-S

2-16GPM/10-60LPM

LZT-2520G-S

2-20GPM/10-70LPM











LZT-40/LZT-50 Series Piping type Flowmeter

Mjodel

Measuring range

Medium

Remarks

LZT-4004G

4-40GPM/15-150LPM

Water

Circular

LZT-4006G

6-60GPM/25-250LPM

LZT-4008G

8-80GPM/30-300LPM

LZT-4010G

10-100GPM/50-350LPM

LZT-4004G-S

4-40GPM/15-150LPM

Square

LZT-4006G-S

6-60GPM/25-250LPM

LZT-4008G-S

8-80GPM/30-300LPM

LZT-4010G-S

10-100GPM/50-350LPM



Model

Measuring range

Medium

Remarks

LZT-5015G

50-150GPM/190-550LPM

Water

Circular

LZT-5020G

50-200GPM/200-750LPM

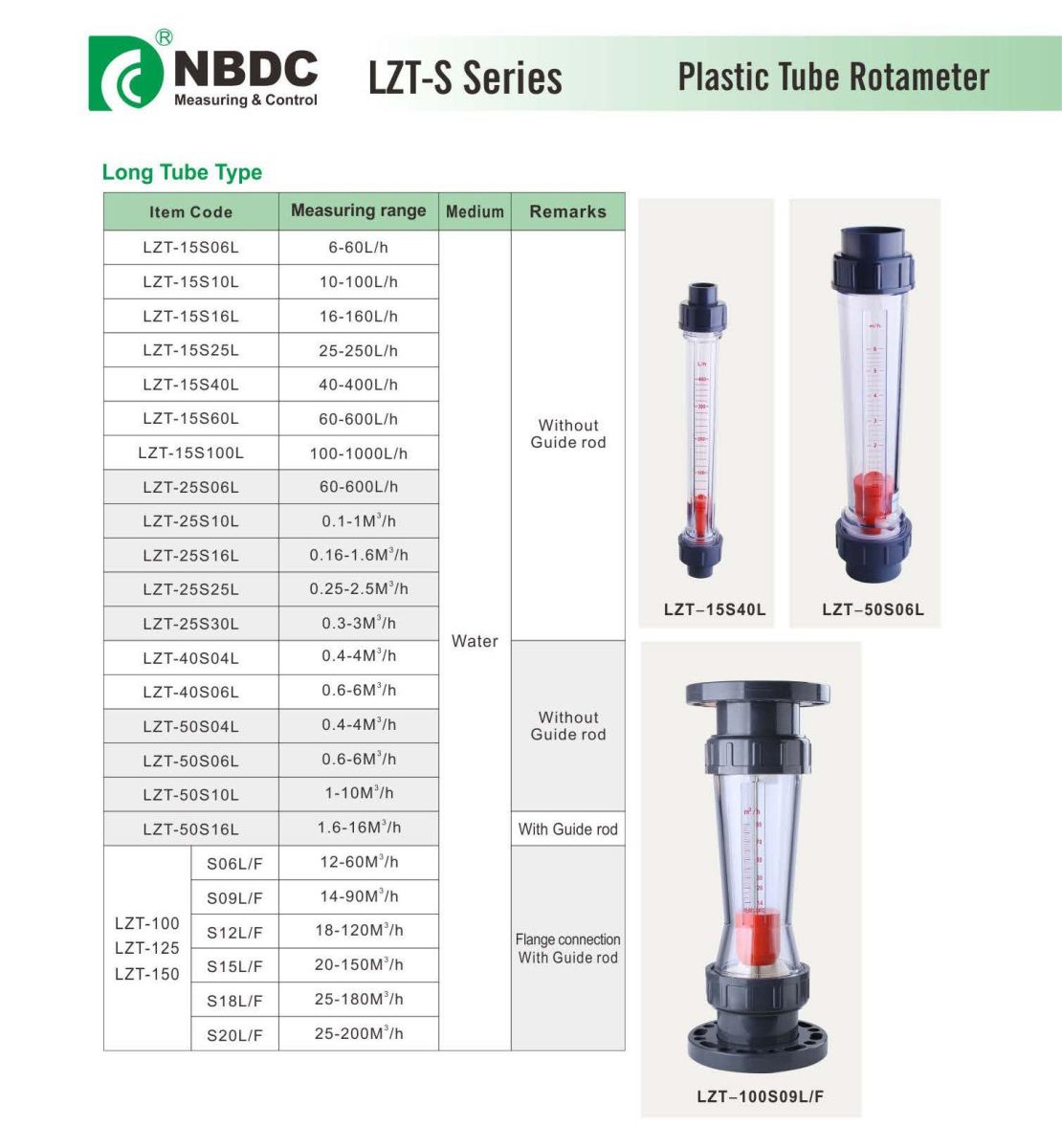

Long tube type

Model

Measuring range

Medium

Remarks

LZT-15S06L

6-60L/h

Water















Without Guide rod

LZT-15S10L

10-100L/h

LZT-15S16L

16-160L/h

LZT-15S25L

25-250L/h

LZT-15S40L

40-400L/h

LZT-15S60L

60-600L/h

LZT-25S06L

60-600L/h

LZT-25S10L

0.1-1m3/h

LZT-25S16L

0.16-1.6m3/h

LZT-25S25L

0.25-2.5m3/h

LZT-25S30L

0.3-3m3/h

LZT-40S04L

0.4-4m3/h



With Guide rod

LZT-40S06L

0.6-6m3/h

LZT-50S04L

0.4-4m3/h



Without Guide rod

LZT-50S06L

0.6-6m3/h

LZT-50S10L

1-10m3/h

LZT-50S16L

1.6-16m3/h

With Guide rod







LZT-100

LZT-125

LZT-150

S05L/F

8-50m3/h









Flange connection

With Guide rod

S06L/F

12-60m3/h

S09L/F

14-90m3/h

S12L/F

18-120m3/h

S15L/F

18-150m3/h

S18L/F

22-180m3/h

S20L/F

25-200m3/h

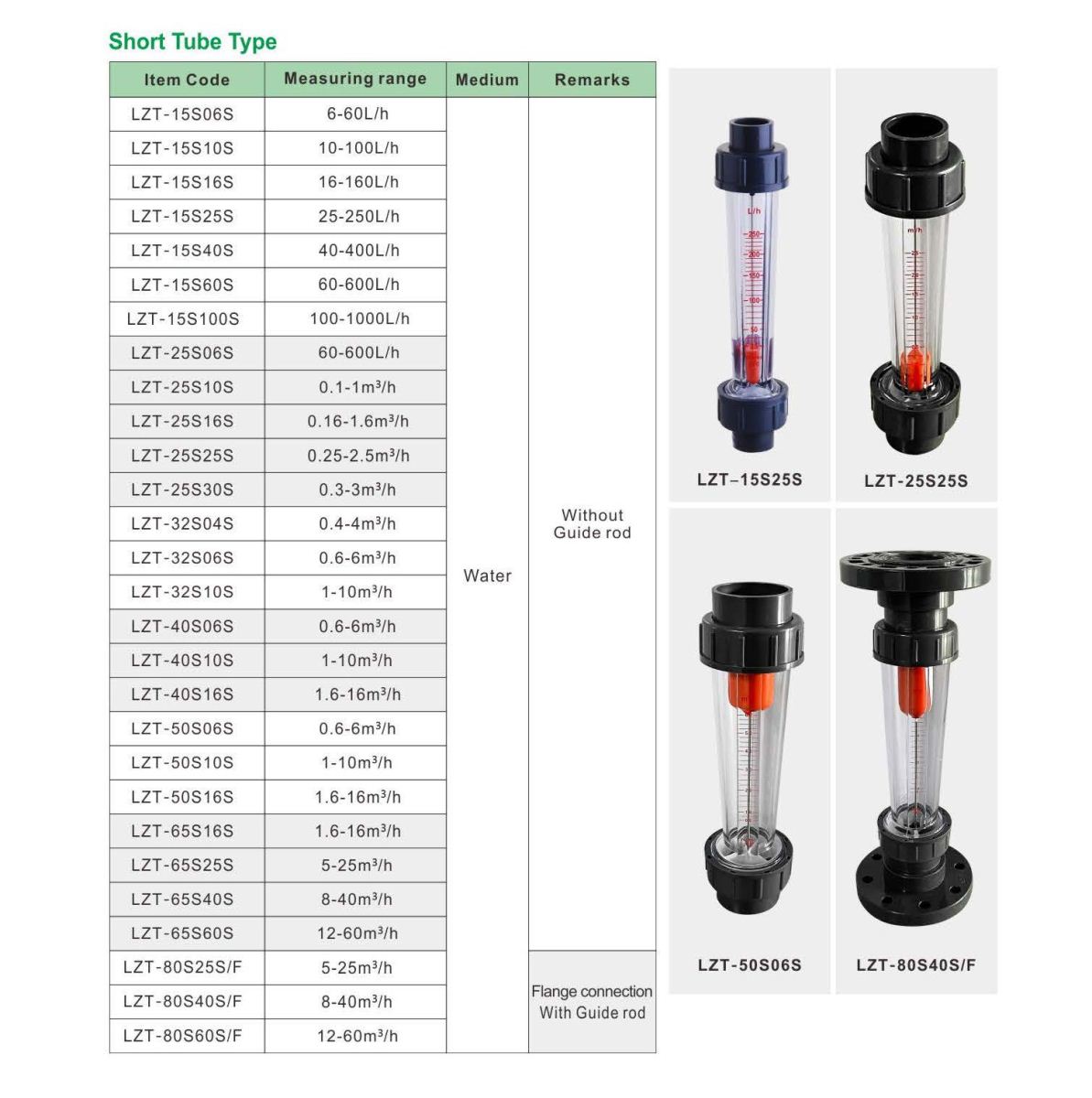

Short tube type

Model

Measuring range

Medium

Remarks

LZT-15S06S

6-60L/h

Water

With Guide rod

LZT-15S10S

10-100L/h

LZT-15S16S

16-160L/h

LZT-15S25S

25-250L/h

LZT-15S40S

40-400L/h

LZT-15S60S

60-600L/h

LZT-25S10S

0.1-1m3/h

LZT-25S16S

0.16-1.6m3/h

LZT-25S25S

0.25-2.5m3/h

LZT-25S30S

0.3-3m3/h

LZT-32S04S

0.4-4m3/h

LZT-32S06S

0.6-6m3/h

LZT-50S10S

1-10m3/h

LZT-50S16S

1.6-16m3/h

LZT-65S25S

5-25m3/h

LZT-65S40S

8-40m3/h

LZT-65S60S

12-60m3/h

LZT-80S25S/F

5-25m3/h

Flange connection

With Guide rod

LZT-80S40S/F

8-40m3/h

LZT-80S60S/F

12-60m3/h

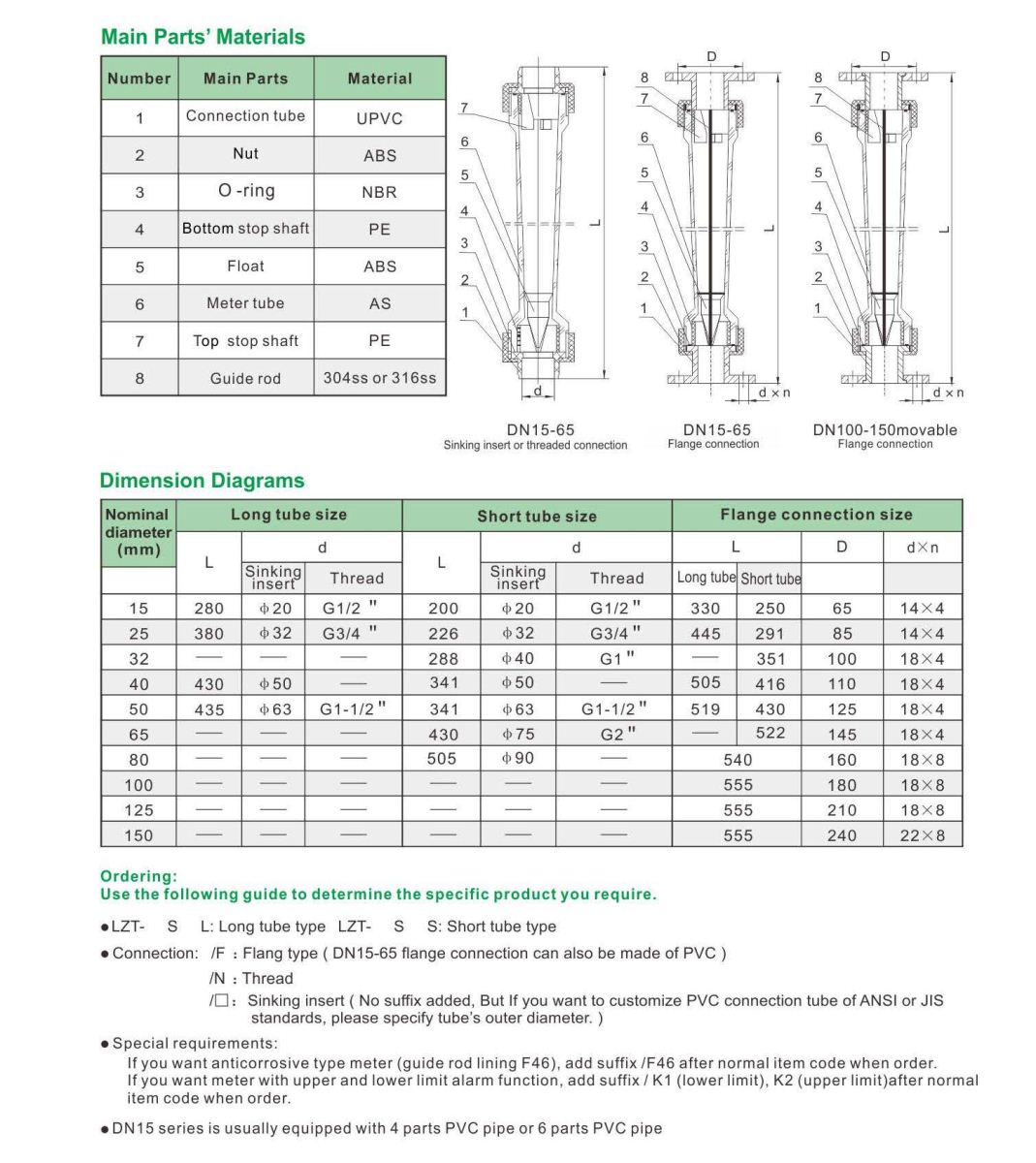

Parts and material

Number

Name

Material

1

Connection tube

UPVC

2

Nut

ABS

3

O-ring

Silicon rubber or EPDM

4

Bottom stop shaft

PP

5

Floater

ABS

6

Cone tube

AS

7

Top stop shaft

PP

8

Guide rod

304ss or 316ss

Dimensions(mm)

(mm)

Nominal

diameter

Long tube size

Short tube size

Flange connection size

L

d

L

d

L

D

d×n



Sinking

insert

Thread



Sinking

insert

Thread

Long tube

Short tube





15

280

φ20

G1/2’’

200

φ20

G1/2’’

320

240

65

14×4

25

380

φ32

G3/4’’

226

φ32

G3/4’’

432

278

85

14×4

32

288

φ40

G1’’

351

100

18×4

40

417

φ50

G11/4’’

489

110

18×4

50

435

φ63

G11/2’’

341

φ63

G11/2’’

519

435

125

18×4

65

430

φ75

G2’’

522

145

18×4

80

540

160

18×8

100

555

180

18×8

125

555

210

18×8

150

555

240

22×8

For Order:

1.LZT-XXSXXL: Long tube                                           3.Special requirements:
   LZT-XXSXXS: Short tube                                             For antisepsis model (guide rod bag Lining F46),
2.Connection:/F:Flang type                                           O-ring is EPDM), suffix"/F46".
                      /N:Thread
                      /口:Sinking insert
