PProducts

Overview

      LC11 Serial Oval Gear Flowmeter is direct reading of totalizing meter.It is a volume type flowmeter that measuers the total volume of the flow through the tube It can be widely used in petroleum chemical medicinal industeies,etc.

Structure and Operationg Principle

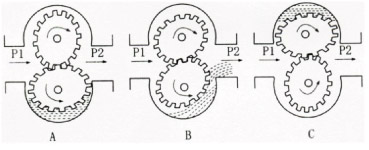

      Under the hydraulic pressure difference of the entrance and the exit of the measuring chamber ,a pair of oval gears arerotating and discharge the liquid .By counting the number of rotation of the oval gear we can get the total volume of theliquid flow through the meter

Chaarateristics


      High accuracy,has little influence of the viscostiy of the liquid
      Do not need staight tube to be connected on the inlet and outlet of the meter
